Wolfe Plow |
 |
Technical Details |
 |
|
 |
|
|
 |
 |
 |
 |
 |
 |
 |
 |
General |
 |

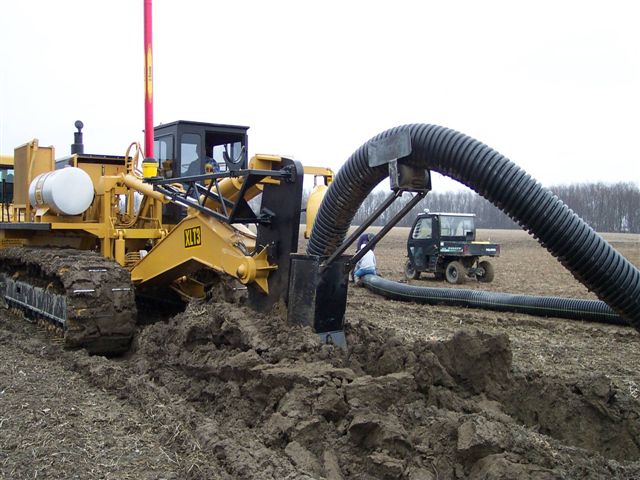

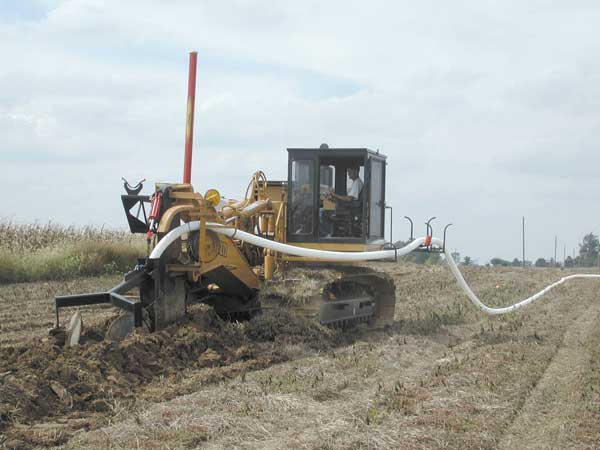

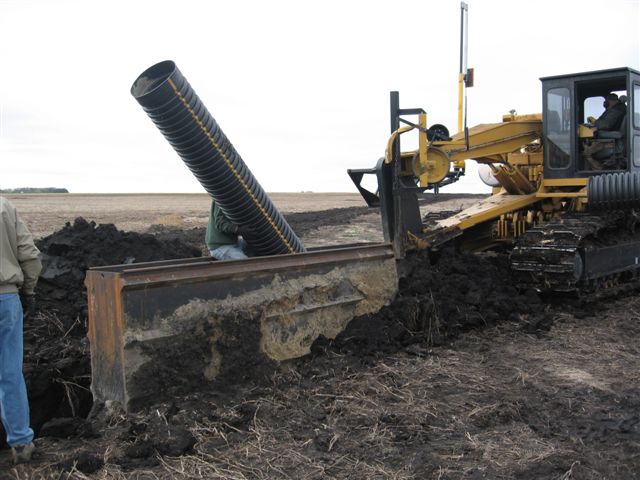

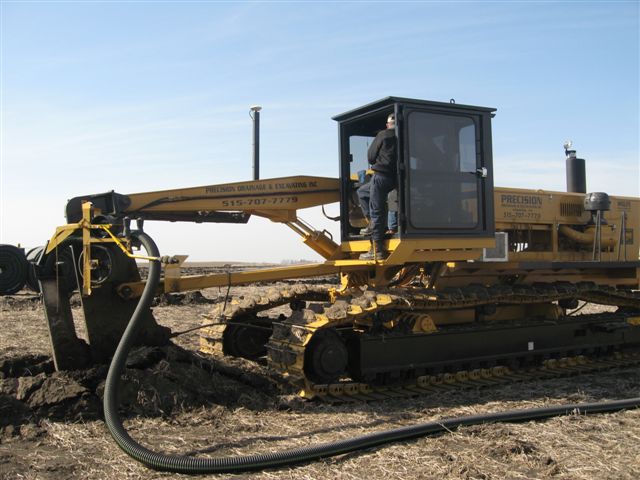

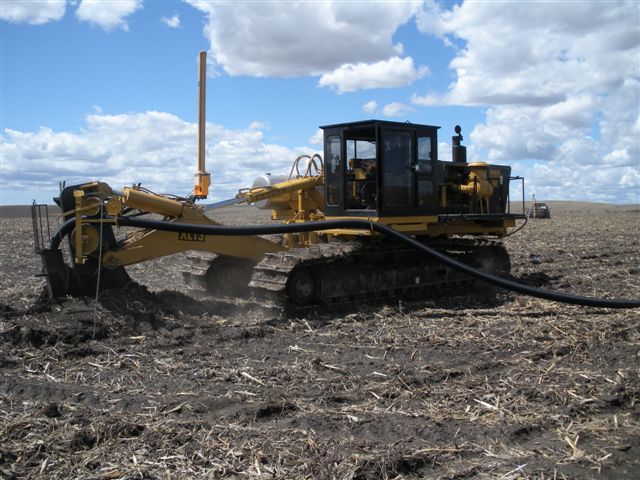

Wolfe 450 Cantilever, 450 Parallel Link, Super Plows |
Weight |
|
60000 - 84000 pounds (30 - 42 t) |
Transport height |
|
11' 3" - 11' 9" (3.429 - 3.581 m) |
Transport length |
|
32' - 35' (9.75 - 10.66 m) |
Transport width |
|
11'8' (3.556 m),
36" (91.44 cm) 330 Cat Track Pads |
 |
 |
 |
|
|
|
|
 |
 |
|
 |
 |
Standard Features |
 |
Creep control | operator selectable ground pressure, automatic operation | Toolbox | Engine doors| Fuel and hydraulic tank isolator mount used on engine, radiator, oil cooler |
 |
 |
 |
 |
 |
Engine |
|
 |
Model |
|
Caterpillar* C15 ACERT @ 440 hp (328 kW) |
Description |
|
turbocharged and air to air after cooled |
Number of cylinders |
|
|
6 in-line |
Maximum no load |
|
|
RPM 2,100 |
Maximum gross horsepower at no load |
|
|
540 (403 kW) |
Cooling medium |
|
extended life coolant |
Cooling rating |
|
adequate for 122 deg F (50 deg C) |
Air cleaner |
|
dry type, centrifugal precleaner with primary
and secondary filters |
Oil filter |
|
full flow canister |
Fuel filter |
|
primary and secondary |
Electrical system |
|
24V starting, 24V controls |
Fuel tank capacity |
|
200 gal. (758 l) |
Fuel consumption at full load |
|
|
|
23.5 gal/hr (89.1 l/hr) |
Operating range |
|
8.5 hours |
|
 |
 |
|
 |
 |
 |
 |
Tracks |
|
|
Overall Track Length |
|
233" - 266" (5.918 - 6.756 m) |
Track pad type |
|
single grouser or Triple |
Track chain type |
|
Caterpillar 330 |
Track chain pitch |
|
8.5000" (21.59 m) |
Track pad width |
|
36" (91.44 cm) |
 |
 |
 |
|
|
|
|
|
|
|
 |
 |
Crawler Drive |
 |
Dual path, hydrostatic drive, planetary transmissions capable of full counter rotation with single or double lever steering | single lever direction
Infinitely variable speed: forward and reverse
high range: 0 - 3.0 mph (4.82 km/hr)
low range: 0 - 1.82 mph (2.92 km/hr) |
 |
|
|
|
 |
 |
|
|
 |
 |
 |
 |
Hydraulic System |
|
|
|
Type |
|
pressure and flow compensated
(load sensing) |
Pump flow maximum |
|
45 GPM (170 l/min) |
Pressure setting |
|
2500 PSI (172 Bar) |
Oil tank capacity |
|
120 gallons (454 l) |
Oil type |
|
Duratran |
 |
 |
 |
 |
|
|
|
|
 |
|
 |
 |
Plow drive |
 |
Depths 6’-7’ (1.829 - 2.135 m)
Widths of cut 3”-15” (7.62 - 38.1 cm) |
 |
|
|
|
 |
 |
 |
options |
 |
 |
Work light package: 24 V for night use | Laser or GPS control

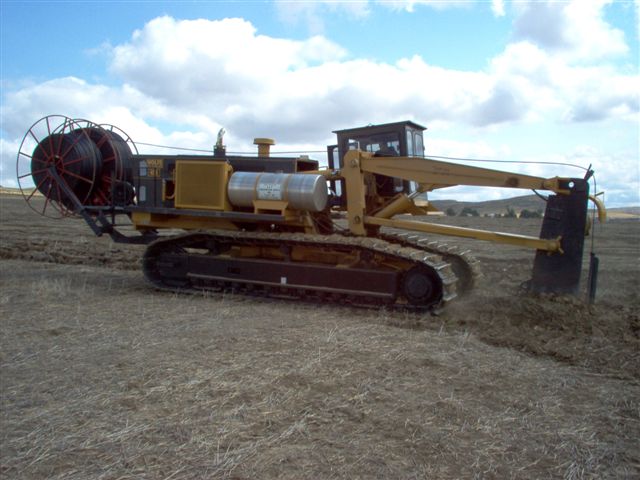

system Twin hose reel package or single spool carrier | AM / FM Radio, Auto Level System
* Caterpillar and Cat are trademarks of Caterpillar Inc. |
 |
|
|
|
 |
 |
 |
 |
 |
|
