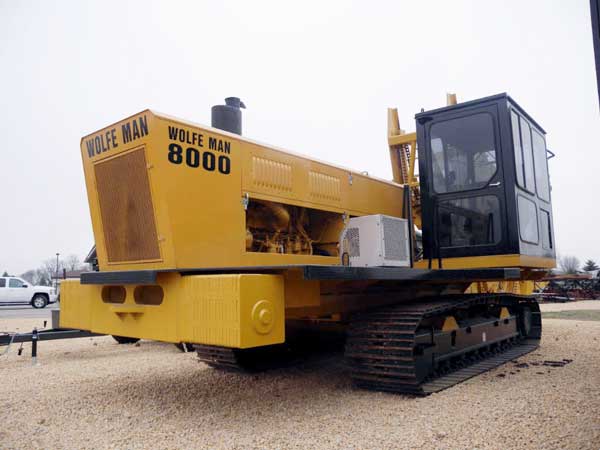

Trencher |
|
| Technical Details |
|
|
|
|
|
|
|
|
 |
|
|
|
|
| General |
|
|
| Weight |
|
160,00 lbs - 175,000 lbs. (72,575 kg - 79,379 kg) |
| Transport height |
|
13' 8" (4,17 m) over wheel with buckets
removed from bottom and from the top |
| Transport length |
|
45' 3" (13,79 m) |
| Transport width |
|
144" (3.66 m) with digging motors removed,
34" (86 cm) D7 track pads |
Width with
extended tracks |
|
|
| 168" (4,27 m) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Standard Features |
|
|
| Creep control |
|
operator selectable digging pressure, automatic operation | Toolbox with locking doors | Engine doors with security locks |
Fuel and
hydraulic tank |
|
|
| aircraft quality locking caps |
| Gearboxes and hydraulic tanks |
|
|
| pressurized with 5 PSIG filtered breathers |
| Flywheel gearboxes |
|
shaved, helical gearing, case hardened for extreme shock load |
Vibration
isolator mount |
|
used on engine, radiator, oil cooler |
|
|
|
|
|
|
|
|
|
| Engine |
|
|
| Model |
|
Caterpillar C15 ACERT* |
| Description |
|
turbocharged and air to air after cooled |
Number of
cylinders |
|
|
| 6 in-line |
Maximum no
load RPM |
|
|
| 2,100 |
Maximum gross
horsepower at
no load |
|
|
| 540 (403 kW) |
| Cooling medium |
|
extended life coolant |
| Cooling rating |
|
adequate for 130 deg F (54 deg C) ambient air temperature |
| Air cleaner |
|
dry type, centrifugal pre-cleaner with primary
and secondary filters |
| Oil filter |
|
full flow canister |
| Fuel filter |
|
primary and secondary |
| Electrical system |
|
24V starting, 12V controls |
| Fuel tank capacity |
|
376 gal. (1,423 l) |
Fuel consumption
at full load |
|
|
|
| 28.9 gal/hr (109,4 l/hr) |
| Operating range |
|
13 hours |
|
|
|
|
|
|
|
|
| Tracks |
|
|
| Overall Track Length |
|
146.3" (3712 cm) |
| Track pad type |
|
single grouser |
| Track chain type |
|
Caterpillar D7 |
| Track chain pitch |
|
8.5000" (21,6 cm) |
| Track pad width |
|
34" (68,4 cm) |
|
|
|
|
|
|
|
|
|
|
|
|
| Crawler Drive |
|
Dual path, hydrostatic drive, planetary transmissions capable of full counter rotation with single lever steering, single lever direction
Infinitely variable speed: forward and reserve, hight range: 0-2.06 mph
(3.32 km/hr) low range: 0-1.17 mph (1.88 km/hr)
Integral parking and service brake: spring applied, hydraulic release, wet disc brake |
|
|
|
|
|
|
|
| Wheel Truck Assemblies |
|
Four assemblies, two upper and two lower with standard 14" (35.6 cm) ride diameter wheels |
Factory set heavy-duty tapered roller bearings |
Heavy-duty mechanical seals with replaceable elements |
|
|
|
|
|
|
|
|

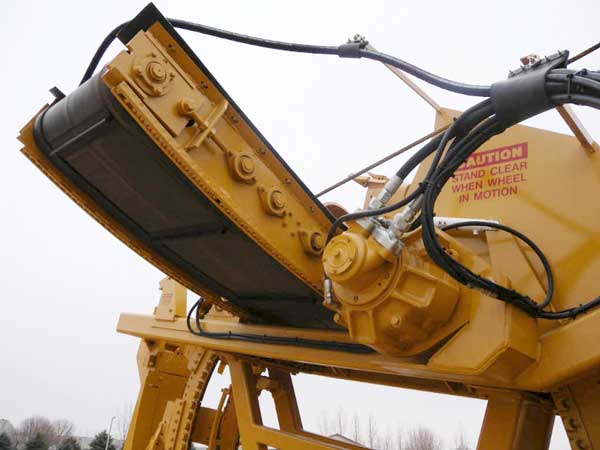

| Conveyor |
|
|
| Hydrostatic |
|
one pump and two motors |
| Description |
|
reversible and shiftable |
| Belt speed |
|
infinitely variable 0-1000 FPM (0-305 m/min.) |
Conveyor belt
width |
|
|
| 48" (122 cm) |
| Discharge height |
|
variable |
| Discharge direction |
|
rigth or left |
| Manual conveyor fold |
|
|
|
|
|
|
|
|
|
| Hydraulic System |
|
|
|
| Type |
|
pressure and flow compensated (load sensing) |
| Pump flow max. |
|
45 GPM (170 l/min.) |
| Pressure setting |
|
2500 PSI (172 Bar) |
| Oil tank capacity |
|
203 gallons (768 l) |
| Oil type |
|
Exxon Mobil Delvac 10W |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Headshaft assembly |
|
Hardened alloy steel shaft with multiple flanges for easy "diggin-width" changes |
Hardened reversible split drive sprockets |
|
|
|
|
|
|
|
|
|

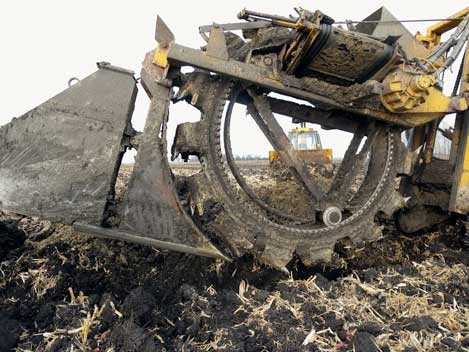

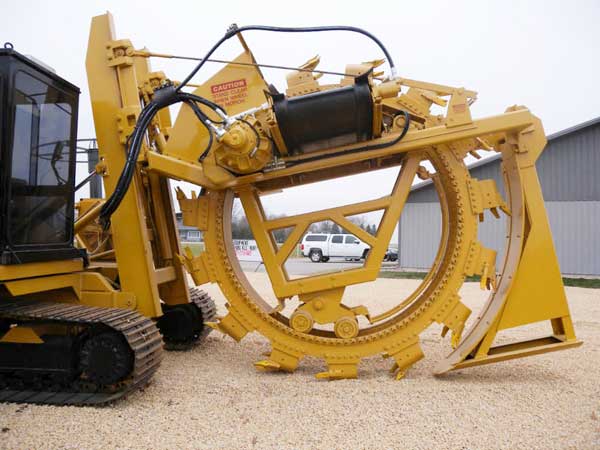

| Trencher Drive |
|
|
| Hydrostatic |
|
160,00 lbs - 175,000 lbs. (72,575 kg - 79,379 kg) |
| Depths |
|
13' 8" (4,17 m) over wheel with buckets
removed from bottom and from the top |
| Widths of cut |
|
24" to 36" (60 cm - 90 cm) |
| Three operator selectable wheel speeds |
|
0-7 RPM (351 ft/min.)
0-10 RPM (500 ft/min.)
0-12 RPM (600 ft/min.) |

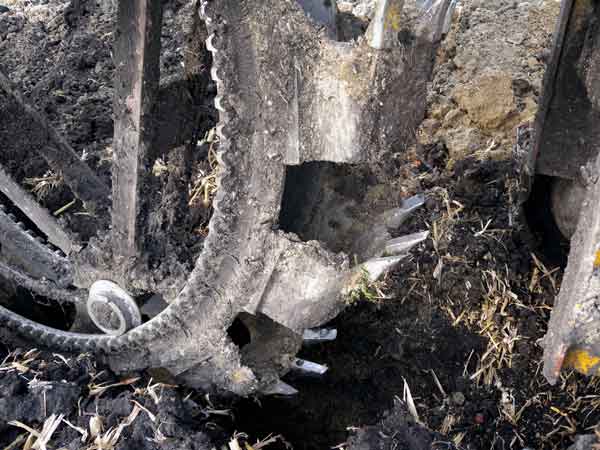

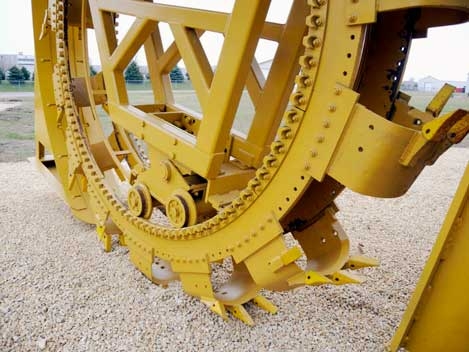

| Digging Rims |
|
1-1/2" Plate (3,8 cm) width forged steel
segments multiple drilled for or bucket set-up |
|
| Available cutters |
|
rotary carbide tipped 1-1/2 diameter (3,8 cm) shank, H&L dirt teeth and pockets, Tesmec
combo pockets for dirt & conical tools,
ESCO type teeth and adaptors |
|
|
|
|
| options |
|
|
Work light package: 24 V for night use |
Laser control system |
Twin hose reel package: connections to power hydraulic tools |
Cab vandalism protection |
Straight conveyor with winch fold
* Caterpillar and Cat are trademarks of Caterpillar Inc. |
|
|
|
|
 |
|
|
|
|
|
